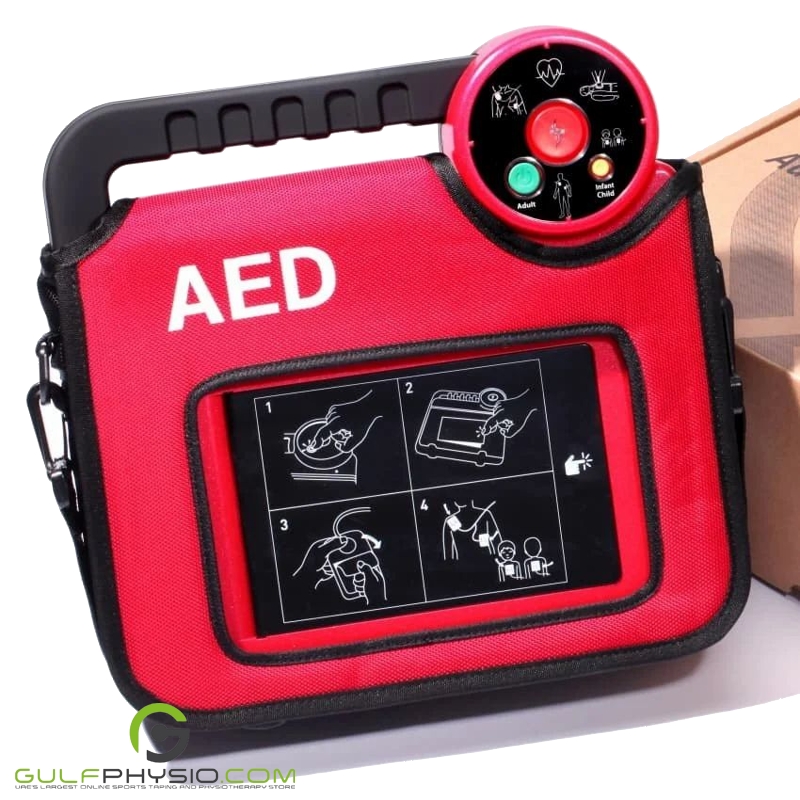

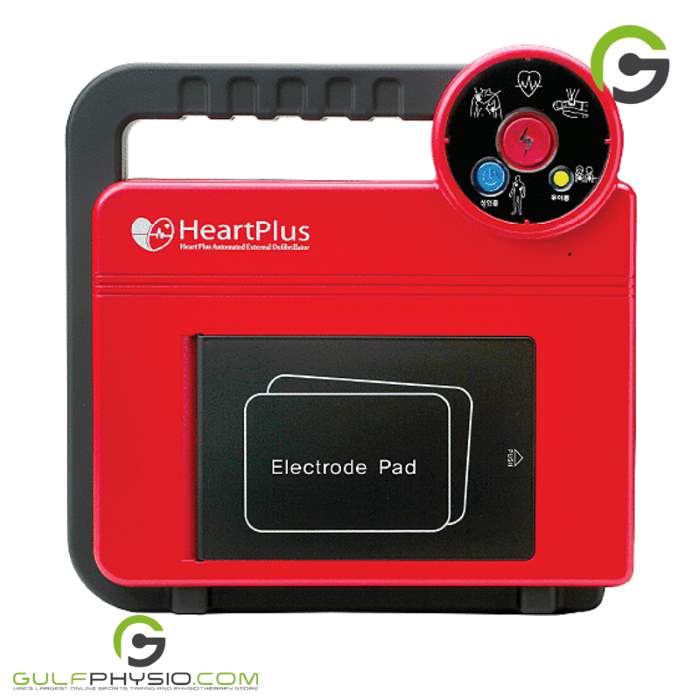

Heart Plus AED (Automated External Defibrillator)

AED 3,400.00

  • The technology in the Heart Plus AED features an accurate ECG analysis, resulting in the most accurate shock/no-shock advice.
  • If the electrodes are not properly attached, the analysis is stopped, and the electric shock process is halted.
  • An overcharge prevention circuit is included to ensure that the proper level of electric shock energy is loaded.
  • DC 9V provides operating power while DC 21V is used exclusively for electric shocks, lessening the chance of power failure.
  • Dual electric shock waveform control circuit regulates the flow of energy within the device to help prevent malfunction.
Categories: , Tags: , Brand:

Description

The Heart Plus AED (Automated External Defibrillator) is a life-saving medical device that can be used safely, quickly, and effectively to treat victims of sudden cardiac arrest.

Accessories

  • All-in-one type battery (battery with electrodes included and connected).
  • Transport bag.
  • Towel.
  • CD-ROM.
  • USB cable.
  • Detachable battery type (battery with separate electrodes).
  • Electrodes to be connected.

Technical features

  • Energy supplied:
    •  180 J (adult with an impedance of 50 Ω);
    • 50 J (child with impedance 50 Ω).
  • Charging time to deliver the shock: less than 13 seconds.
  • Shock delivery method: via manual button.
  • Operation: through visual and acoustic instructions to the operator.
  • Power supply: non-rechargeable battery (LiMn02).
  • Battery autonomy: 180 shocks at 25 ° C, 130 shocks at 0 ° C.
  • Data acquisition: archive of analysis data and environmental sounds in the internal memory.
  • Environmental operating conditions: from 0 ° C to 40 ° C and relative humidity from 10% to 95%
  • Environmental storage conditions: from -20 ° C to 60 ° C.
  • Protection class: IPX2.
  • Dimension: 29.3 x 29.1 x 7.1 cm
  • Weight: 1.9 kg (including battery).
